MERCUSYS POE SWITCH 4 PORT 1G MS105GP

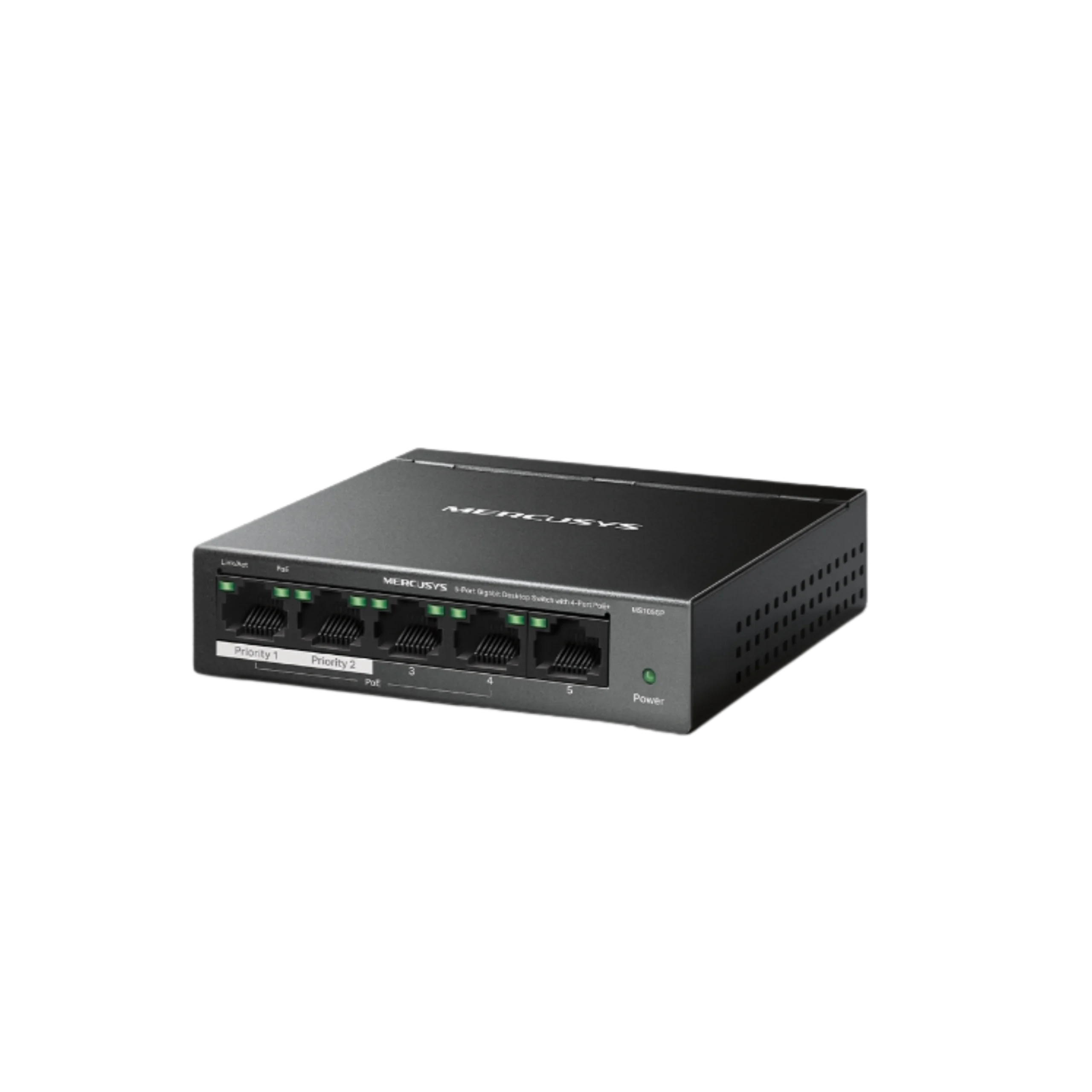

5-Port Gigabit PoE+ Switch – Overview

• Type: Compact Gigabit PoE+ switch for IP cameras, access points, and PoE-enabled devices

• Design: Powerful and space-saving networking solution for demanding environments

🔹 Network Ports

• Ports:

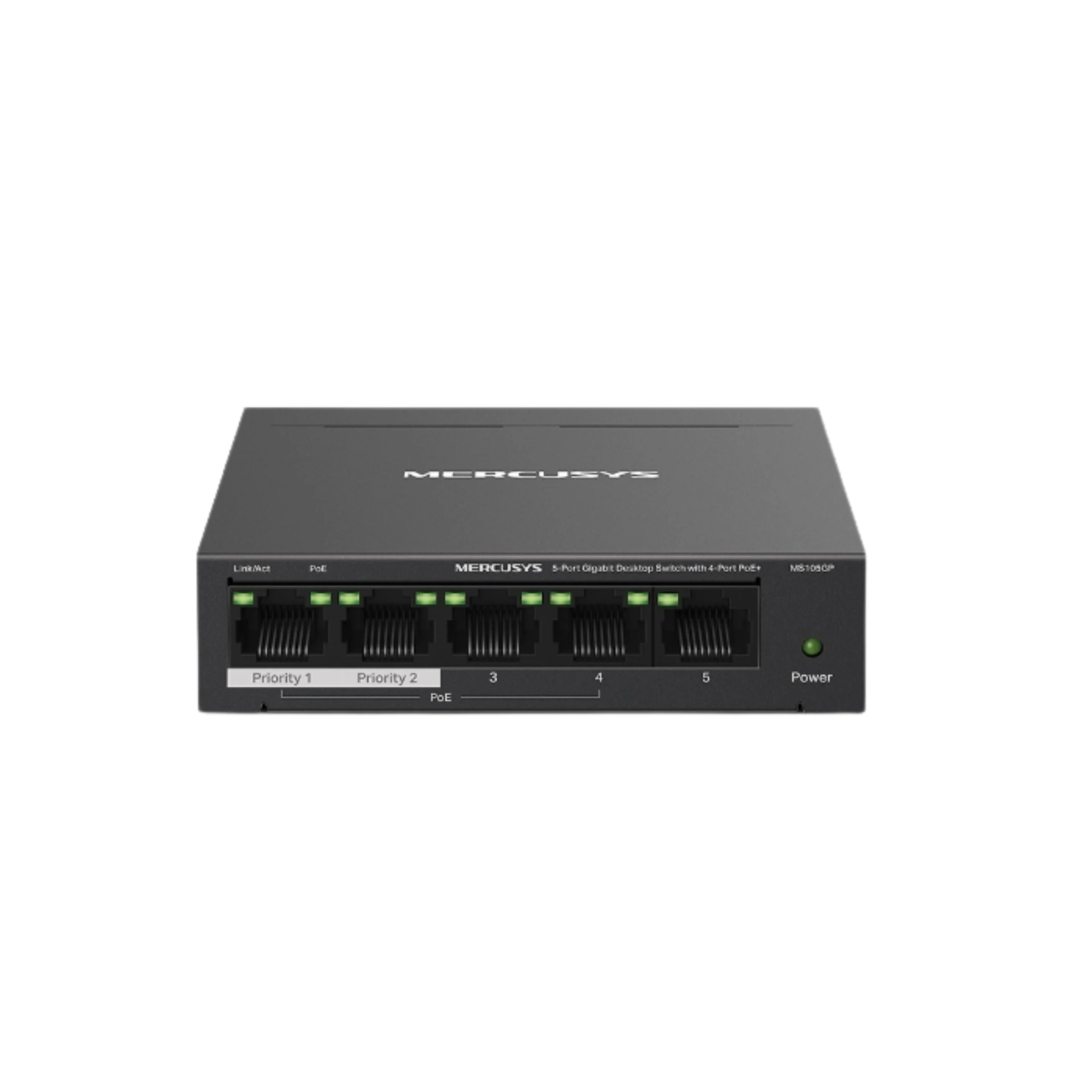

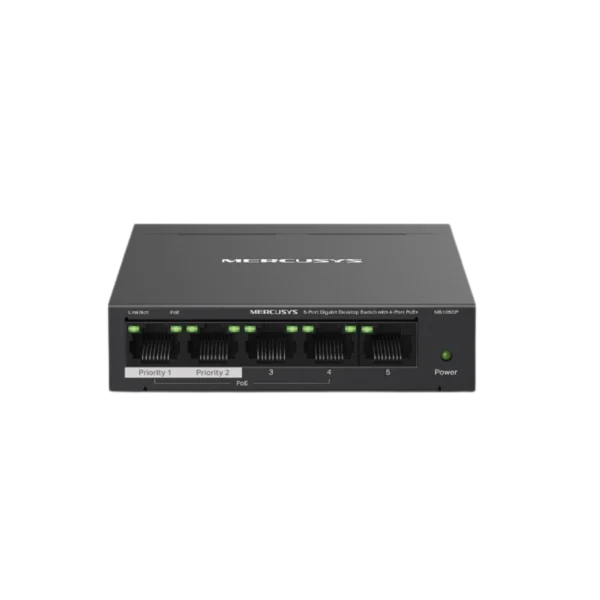

  • 5 × RJ45 Gigabit Ethernet ports

  • Speed: 10/100/1000 Mbps

• Performance: Fast and stable data transmission

🔹 PoE Power Features

• PoE Standard: IEEE 802.3af / IEEE 802.3at (PoE+)

• Per-Port Power Output: Up to 30W

• Total PoE Budget: 65W

• Power Delivery: Single Ethernet cable for data and power

🔹 Extended & Smart Modes

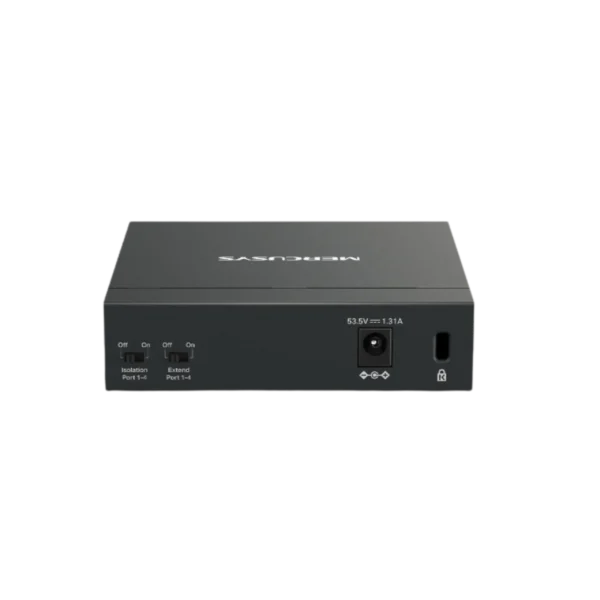

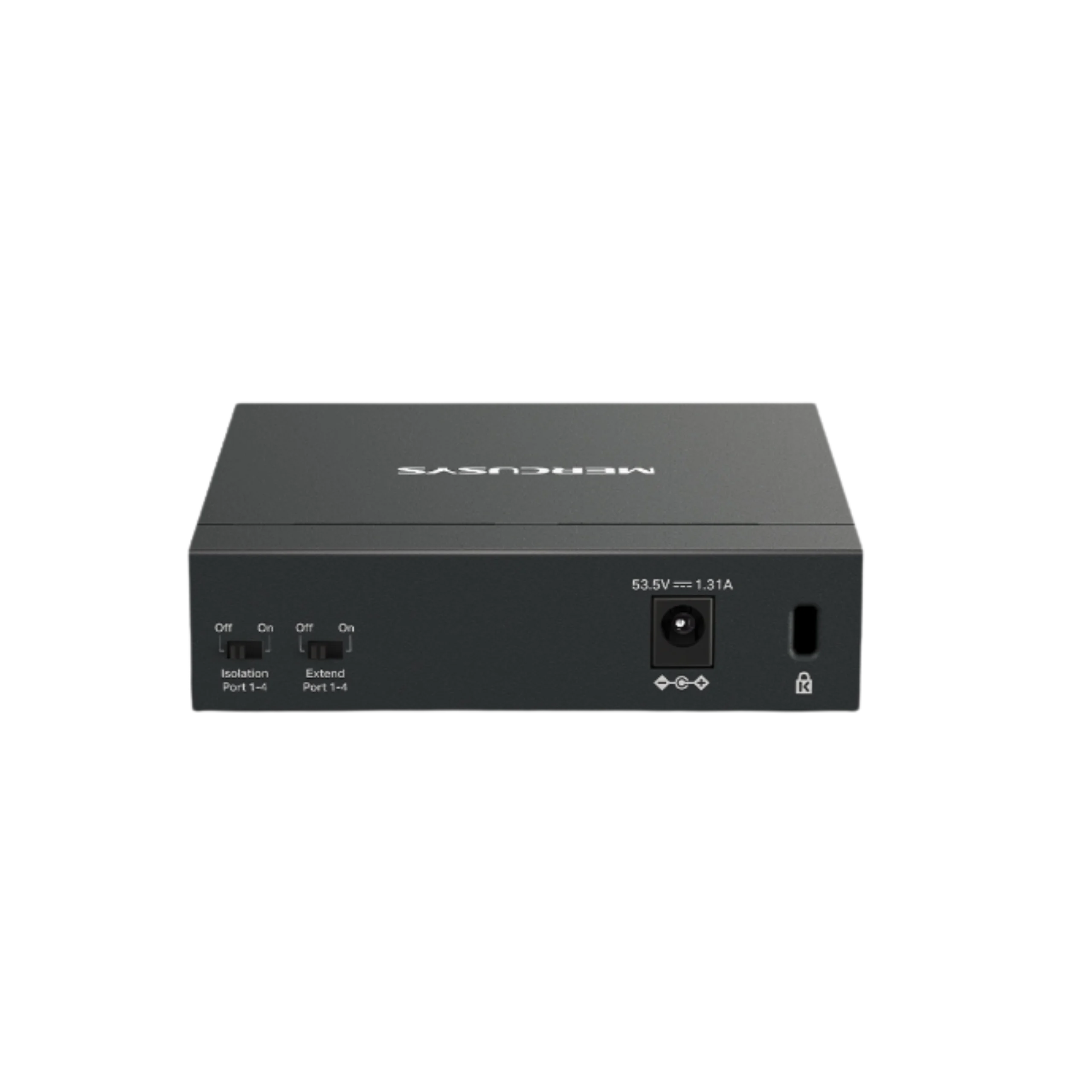

• Extend Mode:

  • PoE data & power transmission up to 250 meters

  • Ideal for long-distance surveillance deployments

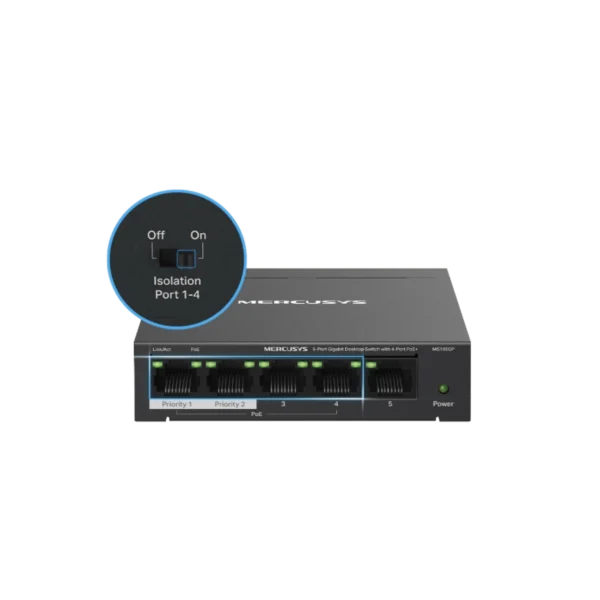

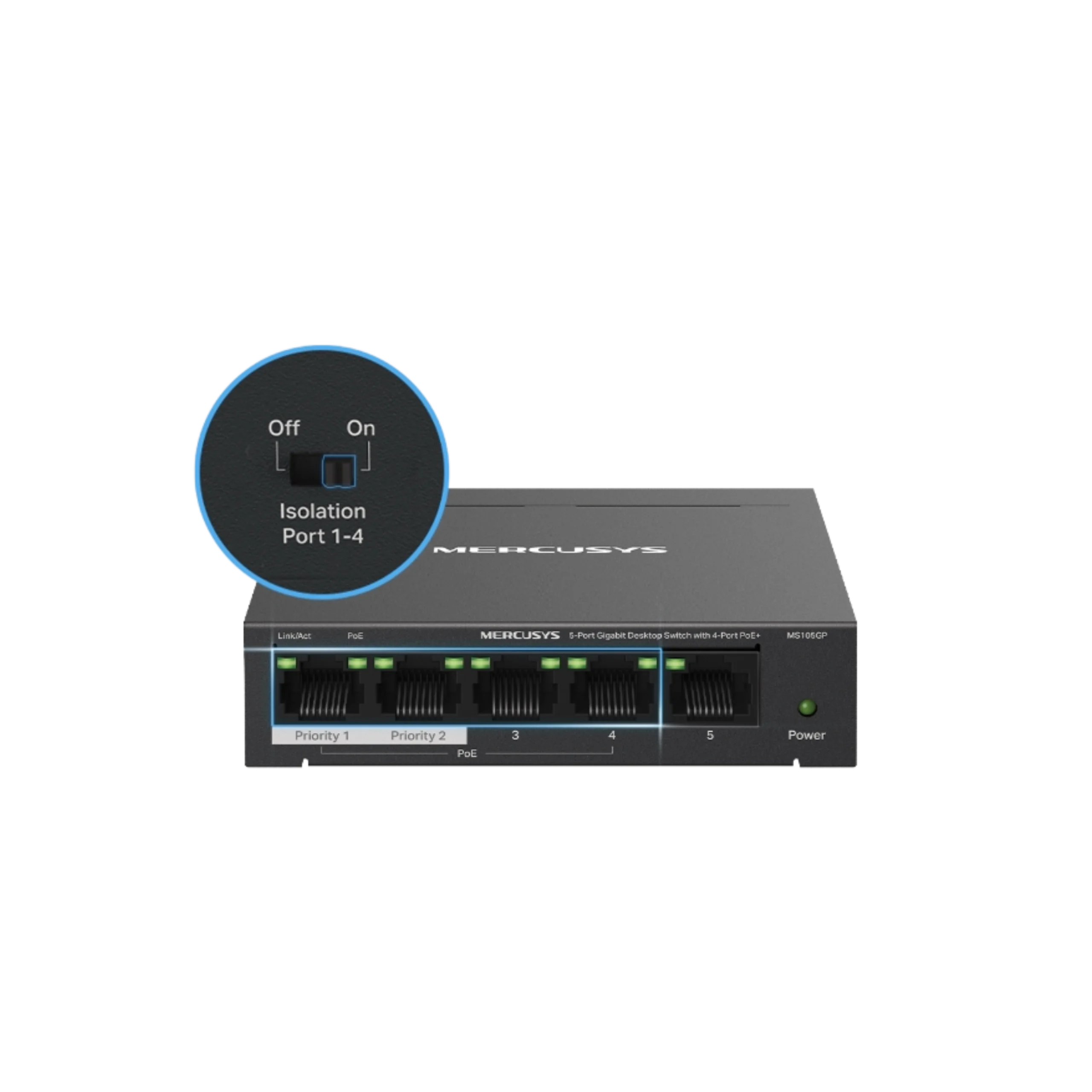

• Isolation Mode:

  • One-click traffic separation between ports

  • Enhances network stability and security

• PoE Auto Recovery:

  • Automatically detects and reboots unresponsive PoE devices

  • Ensures continuous operation without manual intervention

🔹 Compatibility & Reliability

• Device Compatibility:

  • IP cameras

  • Wireless access points

  • VoIP phones

• Casing: Durable metal housing

• Thermal Design: Excellent heat dissipation for long-term operation

🔹 Installation & Use

• Setup: True plug-and-play

• Configuration: No software or configuration required

• Deployment: Connect devices and start networking instantly

🔹 Ideal For

• Long-range PoE installations

• Surveillance systems

• Users seeking a reliable, easy-to-deploy Gigabit PoE+ switch
